RotaryGearPmpHead, CI, 1"InletDia, 125psi MPN:4KHC9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3000444

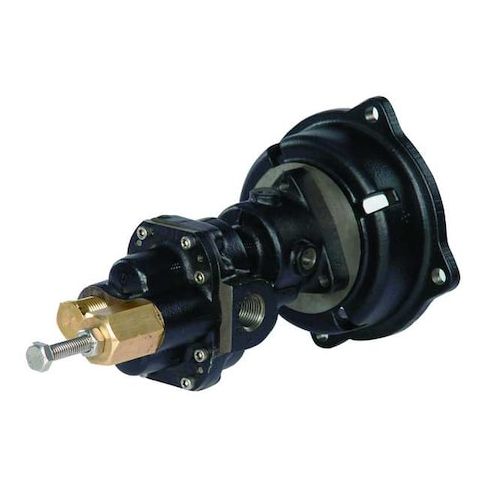

RotaryGearPmpHead, CI, 1"InletDia, 125psi
The Dayton Rotary Gear Pump Head is a reliable and efficient solution for various industrial applications, including chemical processing, water treatment, and HVAC systems. Its cast iron body and mechanical seal ensure durability and resistance to corrosion, while its spur gear design provides smooth and quiet operation. With a maximum flow rate of 23.9 gpm at 100 psi, this pump head is ideal for applications requiring high-pressure and high-flow rates. Its compact design and NPT connection make it easy to integrate into existing systems, making it a versatile choice for a wide range of industries and applications.
Top product features:
- Rotary gear pump design allows for high-pressure operation up to 125 psi.
- Mechanical seal with multiple materials (Buna-N, Carbon, Ceramic, Stainless Steel) provides durability and resistance to wear.
- Spur gear design enables efficient flow rates of up to 23.9 gpm at 100 psi.
Top product applications:
- Fluid Handling in Industrial Settings
- Chemical Transfer and Mixing Systems
- Hydraulic Power Units and Systems
Rotary Gear Pump Head, Body Material Cast Iron, Compatible Motor Frame 182TC/184TC, Viscosity - Maximum 550 SUS, Suction Lift - Maximum 19.5 ft, Operating Pressure - Maximum 125 psi, Operating Temperature - Maximum 280 Degrees F, Operating Temperature - Minimum 32 Degrees F, Required Horsepower 3 hp, Connection Size 1 in, Connection Type NPT, Shaft Outer Diameter 3/4 in, Flow Rate @ 100 psi 23.9 gpm, Seal Type Mechanical, Seal Material Buna-N, Carbon, Ceramic, Stainless Steel, Gear Design Spur
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.25
- Package Width: 11.25
- Package Height: 14.50
- Package Weight: 22.00
Product info last updated on February 19, 2026 1:40pm UTC
Category: Positive Displacement Pumps
