Three-Phase General Purpose Motor, 1 1/2 HP, 143-5T/56HZ Frame, 208-230/460V AC Voltage MPN:2NKY5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2982542

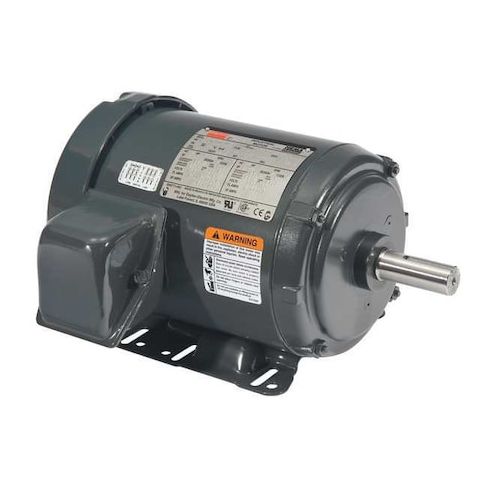

Three-Phase General Purpose Motor, 1 1/2 HP, 143-5T/56HZ Frame, 208-230/460V AC Voltage
This Dayton 1.5 HP three-phase general purpose motor is designed for a wide range of applications, including industrial machinery, HVAC systems, and material handling equipment. Its totally enclosed fan cooled motor enclosure provides reliable operation in harsh environments, while its rigid base motor mounting type ensures stable performance. With a nameplate RPM of 3515 and a maximum ambient temperature of 40 degrees C, this motor is suitable for continuous duty applications. Its high efficiency and durable ball bearings minimize energy consumption and reduce maintenance costs, making it an ideal choice for industries requiring reliable and efficient power.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Industrial conveyor systems
- Pumps and water treatment equipment
- Fans and blowers for HVAC and industrial ventilation
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3515, Frame 143-5T/56HZ, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 4.0/2.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.40
- Package Width: 11.40
- Package Height: 11.00
- Package Weight: 37.47
Product info last updated on March 28, 2026 3:41pm UTC
Category: Motors
