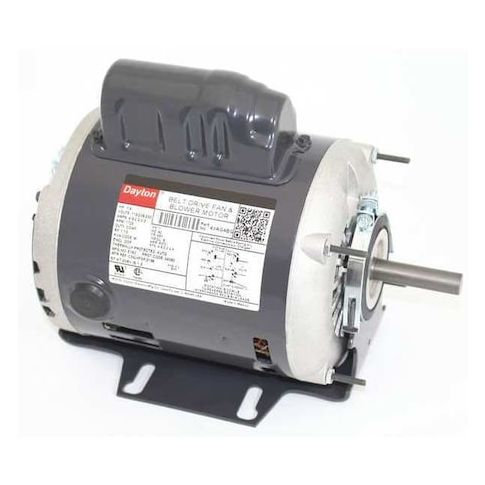

Capacitor-Start Belt Drive Motor, 1/4 HP, 48Y Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM MPN:4VAG4BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2974273
Capacitor-Start Belt Drive Motor, 1/4 HP, 48Y Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM
This 1/4 HP Capacitor-Start Belt Drive Motor from Dayton is a reliable and efficient solution for various applications, including fans and blowers. With a nameplate RPM of 1,725, it provides consistent performance in single-phase environments. The motor's design features a capacitor-start motor, allowing for smooth and quiet operation. Its open drip-proof enclosure and cradle base mounting make it easy to integrate into various systems. Suitable for continuous duty cycles, this motor is ideal for use in commercial and industrial settings, offering a long service life and minimal maintenance requirements. Its compact size and robust design make it a versatile choice.
Top product features:
- Capacitor-start design for improved starting torque and efficiency
- Single-phase motor operation for compatibility with standard household electrical systems
- Open drip-proof enclosure design for protection against dust and water spray
Top product applications:
- HVAC systems for residential and commercial use
- Industrial ventilation systems for factories and warehouses
- Ducted air handling systems for offices and schools
Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 4.5/2.2-2.3 A Full Load Amps, 48Y Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 16.00
Product info last updated on February 22, 2026 7:26pm UTC
Category: Motors
