Speed Reducer, C-Face, 56C, 17.5:1 MPN:4Z617
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2956931

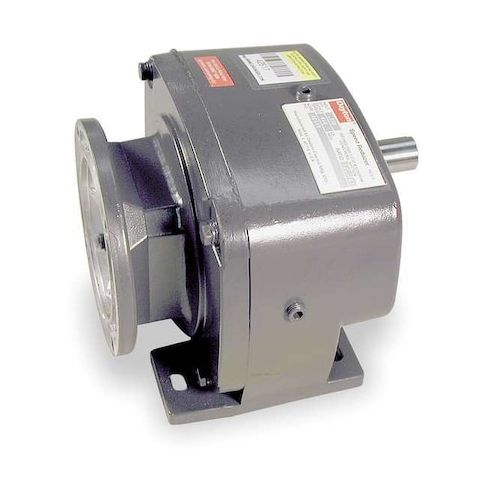

Speed Reducer, C-Face, 56C, 17.5:1
This Dayton speed reducer is a reliable and efficient solution for applications requiring precise speed control. Featuring a helical and spur gear design, it provides a maximum output speed of 99 RPM and a gear ratio of 17.5:1, making it ideal for applications such as conveyor systems, packaging machinery, and material handling equipment. With a maximum input horsepower of 0.75 hp and a maximum output torque of 454 in-lb, it can handle demanding loads with ease. Its compact design and horizontal mounting orientation make it easy to integrate into existing systems, providing a reliable and efficient solution for a variety of applications.
Top product features:
- C-Face input connection type for easy integration with other equipment
- Helical and spur gear design for smooth and efficient speed reduction
- Keyed output shaft for secure connection to other components
Top product applications:
- Speed Reducer
- Horizontal applications where low speed and high torque are required
- Applications where the output shaft must be keyed
Speed Reducer, Input Connection Type C-Face, Gear Type Helical, Spur, Output Shaft Type Keyed, Maximum Output Speed 99 RPM, Motor Frame Designation 56C, Base to Center 4.88 in, Gear Ratio 17.5:1, Rotation CW/CCW, Maximum Input Horsepower 0.75 hp, Maximum Output Torque 454 in-lb, Overhung Load Capacity 773 lb, Mounting Orientation Horizontal, Overall Height 7.47 in, Mount Hole Center-to-Center Length 4.5 in, Application Speed Reducer, Bearing Type Ball, Maximum Input Speed 1,800 RPM
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 11.00
- Package Height: 9.40
- Package Weight: 24.00
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on February 20, 2026 6:23am UTC
Category: Bearings, V-belts and Power Transmission Equipment
