C-Frame Motor, Shaft End, 1 In. L, Auto MPN:4M073E
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2929832

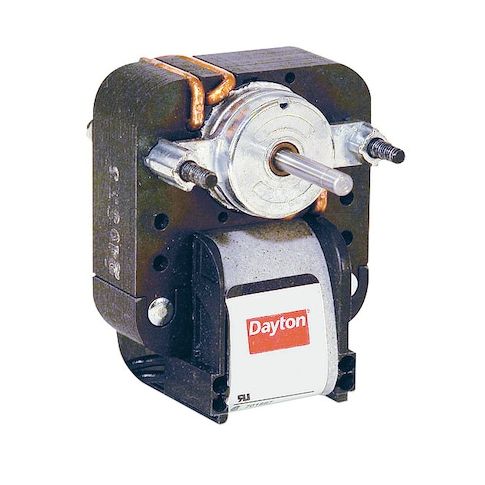

C-Frame Motor, Shaft End, 1 In. L, Auto
This compact C-Frame Motor from Dayton is designed for single-phase applications, offering a reliable and efficient solution for a range of uses. With a 1/70 horsepower rating and 3,000 RPM, it's ideal for low-power applications such as small machinery, laboratory equipment, and medical devices. Its open air over design and stud mounting type provide easy installation and maintenance. The motor's continuous duty cycle and thermal protection make it suitable for use in environments with moderate temperatures. Its compact size and low power consumption make it a great choice for applications where space and energy efficiency are a concern.
Top product features:
- Single Phase operation
- Shaded Pole motor design
- Continuous duty cycle
Top product applications:
- Applications for C-Frame Motor:
- Medical Equipment
- Conveyor Systems
C-Frame Motor, Single Phase, Motor Design Shaded Pole, 1/70 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 0.69 A Full Load Amps, C-Frame Frame, Output Watts 13W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection One-Shot, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.94
- Package Width: 3.35
- Package Height: 2.68
- Package Weight: 1.87
Product info last updated on February 23, 2026 5:16pm UTC
Category: Motors
