Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 145TC Frame MPN:4K811
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2921326

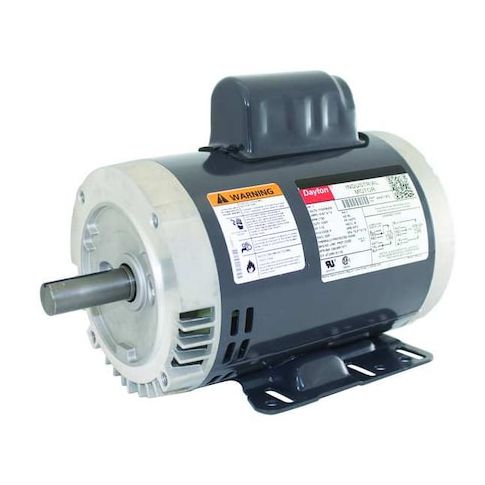

Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 145TC Frame
This 1 hp Capacitor-Start General Purpose Motor from Dayton is a reliable and efficient solution for various applications. Suitable for use in single-phase systems, it operates at 1,725 RPM and can handle continuous duty cycles. The motor's open drip-proof enclosure and CW/CCW rotation make it ideal for a range of environments. Its 1.15 service factor and 40°C maximum ambient temperature ensure optimal performance. Perfect for industrial settings, this motor is also suitable for use in residential applications, such as water pumps and fans, where its 115/208-230V AC voltage and 14.8/7.5-7.3 A full load amps make it a versatile choice.
Top product features:
- Single Phase Motor Design with Capacitor-Start Technology
- Usable at 208V
- Continuous Duty Cycle Capability
Top product applications:
- General purpose industrial machinery
- Conveyor systems
- Pumps and water treatment equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.8/7.5-7.3 A, 145TC Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 3, 2026 3:52pm UTC
Category: Motors
