Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56 Frame MPN:5K672
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2903232

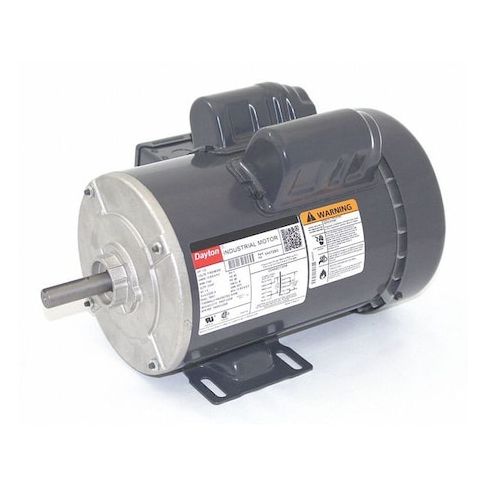

Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56 Frame
This 1/2 horsepower motor is a reliable and efficient solution for a wide range of applications. Its capacitor-start/run design provides smooth and quiet operation, making it ideal for use in residential and commercial settings. The motor is designed for continuous duty and can operate in temperatures up to 40 degrees C. Its totally enclosed fan-cooled design ensures long motor life and reduces maintenance costs. Suitable for use in applications such as water pumps, fans, and conveyor systems, this motor is a versatile and cost-effective choice for any project that requires a reliable and efficient motor.
Top product features:
- Totally Enclosed Fan Cooled design for increased durability and protection from the environment
- Continuous Duty Cycle for uninterrupted operation
- Single Phase Motor Design with Capacitor-Start/Run for efficient and reliable power conversion
Top product applications:
- Pumps for water treatment and irrigation systems
- Fans for HVAC and industrial ventilation systems
- Conveyors and material handling systems in manufacturing and warehousing environments
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.6/5.4-5.3 A, 56 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 39.50
Product info last updated on February 15, 2026 3:17am UTC
Category: Motors
