Capacitor-Start General Purpose Motor, 1/4 hp HP, 56C Frame, 115/208-230V AC Voltage MPN:6XJ44
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2866613

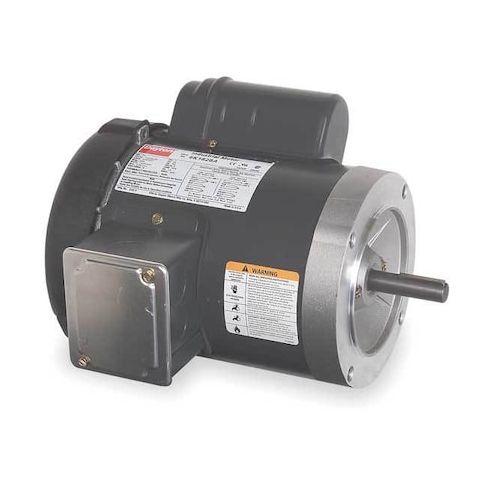

Capacitor-Start General Purpose Motor, 1/4 hp HP, 56C Frame, 115/208-230V AC Voltage
The Dayton Capacitor-Start General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in various environments, including industrial and commercial settings, this motor can handle continuous duty cycles in temperatures up to 40 degrees C. With a single-phase design and 1/4 horsepower rating, it's perfect for powering small equipment and machinery. The totally enclosed fan-cooled design ensures quiet operation and long motor life. Use it in applications such as pumps, conveyors, and fans, where a compact and dependable motor is required. Its versatility and durability make it an excellent choice for many industries.
Top product features:
- Single Phase Motor Design
- Totally Enclosed Fan Cooled Motor Enclosure
- Keyed Motor Shaft Design
Top product applications:
- Pump applications such as water pumps, sump pumps, or irrigation pumps
- Conveyor systems for moving small to medium-sized materials
- Fans for ventilation or cooling systems in industrial or commercial settings
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 5.6/2.8-2.7 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base, Motor Shaft Design Keyed
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 26.88
Product info last updated on February 5, 2026 4:24am UTC
Category: Motors
