Three-Phase General Purpose Motor, 3 HP, 182T/4T Frame, 208-230/460V AC Voltage, 3, 540 Nameplate RPM MPN:2NKY7
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2858834

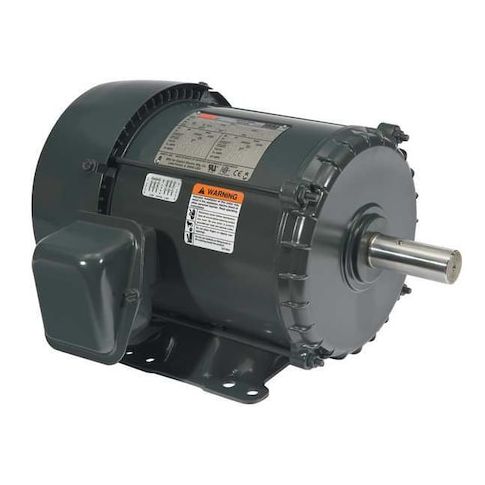

Three-Phase General Purpose Motor, 3 HP, 182T/4T Frame, 208-230/460V AC Voltage, 3, 540 Nameplate RPM
This three-phase general purpose motor is designed for a wide range of applications, including manufacturing, material handling, and HVAC systems. With a 3 HP rating and 3,540 nameplate RPM, it provides reliable and efficient power for demanding tasks. The motor's totally enclosed fan cooled design and rigid base mounting ensure durability and stability, while its ball bearings and class F insulation provide long-lasting performance. Suitable for continuous duty in temperatures up to 40°C, this motor is ideal for applications requiring high torque and efficient operation, such as conveyor systems, pumps, and fans.
Top product features:
- Three-Phase General Purpose Motor
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 3,540, Frame 182T/4T, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 7.8/3.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 13.50
- Package Height: 13.70
- Package Weight: 60.00
Product info last updated on February 20, 2026 4:04pm UTC
Category: Motors
