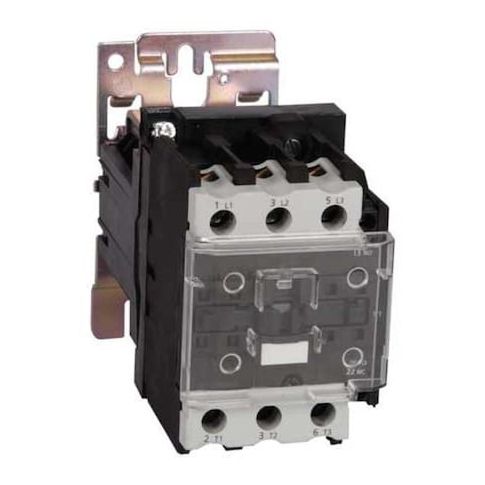

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing MPN:6ECD7

• The DAYTON IEC Magnetic Contactor is a 3-pole, non-reversing, IEC-style electromagnetic switch rated for controlling power circuits within specified parameters. It includes auxiliary contacts (1NO/1NC) and a 24 V DC coil

• dimensions are provided for reference. Rated to operate within the specified frequency range of 50/60 Hz and has no embedded surge suppressor. It has maximum current ratings of up to 65 A inductive and 80 A resistive at full load under specified conditions and complies with CSA and UL standards.

  - Poles: 3

• - Action / Reversing: Non-Reversing
• - Coil Voltage: 24 V DC
• - Auxiliary Contacts: 2 (1NO/1NC)
• - Embedded Surge Suppressor: No
• - Enclosure: No Enclosure
• - Frequency: 50/60 Hz
• - Full Load Amps: Inductive 65 A
• Resistive 80 A
• - HP Ratings: 5 hp @ 120V
• 10 hp @ 230V
• 10 hp @ 240V
• 20 hp @ 208V
• 20 hp @ 240V
• 50 hp @ 480V
• 50 hp @ 575V
• - Dimensions (W x H x D): 2.95 in x 2.95 in x 6.73 in
• - Standards: CSA, UL Listed
