Condenser Fan Motor, 1/8 hp MPN:4M224
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2818435

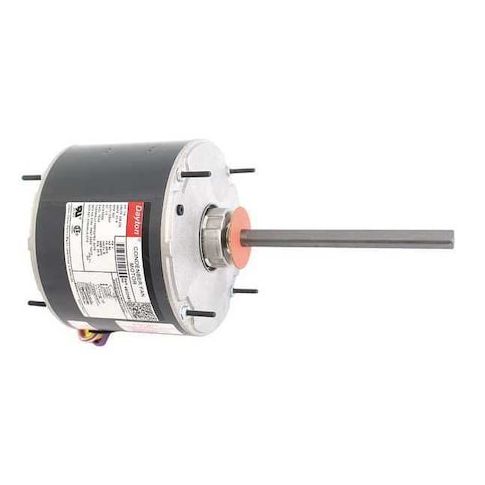

Condenser Fan Motor, 1/8 hp
Upgrade your HVAC system with the Dayton 1/8 hp Condenser Fan Motor, designed for single-phase applications. This reliable motor features a permanent split capacitor design, ensuring efficient operation and long lifespan. With a nameplate RPM of 825 RPM and a continuous duty cycle, it's perfect for various applications such as air conditioning, refrigeration, and ventilation systems. The motor's totally enclosed air-over design provides protection against dust and moisture, while its CW/CCW shaft rotation offers flexibility in installation. Ideal for commercial and industrial use, this motor is a cost-effective solution for maintaining a comfortable and healthy indoor environment.
Top product features:
- Permanent Split Capacitor motor design for reliable operation
- Totally Enclosed Air-Over motor enclosure for protection from dust and debris
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Central Air Conditioning System
- Room Air Conditioner
- Packaged Rooftop Air Conditioning Unit
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 208-230V AC, 0.95-0.80 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position Vertical Shaft Up/Shaft Down, Shaft Length 6 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 7.00
- Package Height: 7.00
- Package Weight: 11.88
Product info last updated on March 25, 2026 10:24am UTC
Category: Motors
