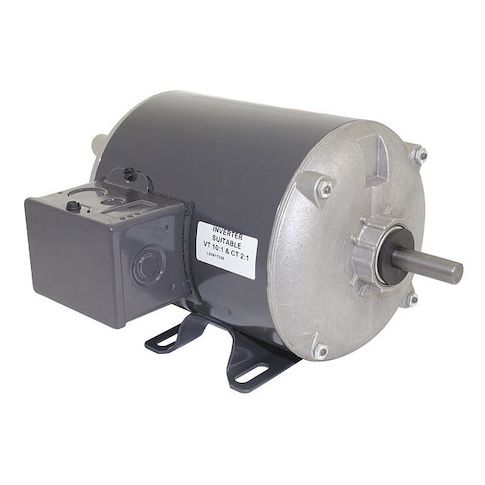

Three-Phase General Purpose Motor, 1/3 HP, 48 Frame, 208-230/460V AC Voltage, 3, 450 Nameplate RPM
This Dayton three-phase general purpose motor is ideal for a variety of applications, including industrial processes, commercial equipment, and HVAC systems. With a 1/3 HP rating and 3,450 nameplate RPM, it provides reliable and efficient operation. The motor's totally enclosed non-ventilated design protects against dust and moisture, while its rigid base mounting ensures stable performance. Suitable for continuous duty, it's perfect for applications requiring high reliability and minimal maintenance. Its compact size and lightweight design make it easy to integrate into existing systems, making it an excellent choice for a range of industrial and commercial applications.
Top product features:
- Three-Phase Operation: The motor operates on three-phase AC voltage, providing efficient power delivery.
- Totally Enclosed Non-Ventilated Motor Enclosure: The motor has a sealed design that protects internal components from dust and moisture.
- Ball Motor Bearings: The motor features ball bearings for smooth and quiet operation, reducing wear and tear.
Top product applications:
- Industrial Automation
- Pumps and Compressors
- Conveyors and Material Handling Systems
General Purpose Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 1/3 HP, Nameplate RPM 3,450, Frame 48, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 1.2-1.1/0.60 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 10.50
- Package Height: 10.88
- Package Weight: 30.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
