Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 184T Frame MPN:5K967
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2807987

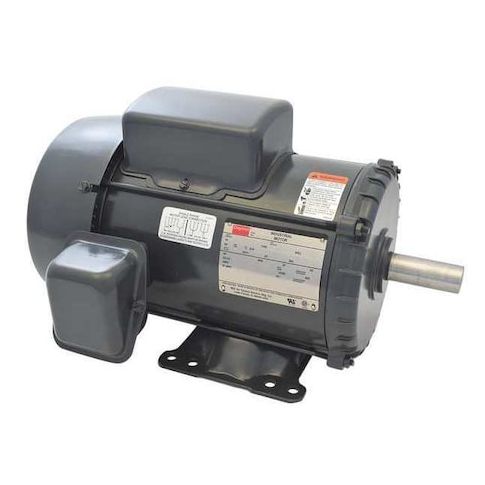

Capacitor-Start/Run General Purpose Motor, 3 hp HP, 115/230V AC Voltage, 184T Frame
The Dayton Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in residential and commercial settings, this motor is designed for continuous duty cycles and can operate at 115/230V AC voltage. With a 3 hp rating and 1,740 RPM, it's perfect for applications such as fans, pumps, and compressors. The motor's totally enclosed fan-cooled design provides protection from dust and moisture, while its rigid base and horizontal mounting position ensure stable operation. Ideal for use in garages, workshops, and other areas where reliability and efficiency are crucial.
Top product features:
- Operates at 1,740 RPM
- Totally Enclosed Fan Cooled design for improved reliability and reduced noise
- Keyed shaft for secure motor mounting and reduced vibration
Top product applications:
- Industrial Laundry Equipment
- Factory Automation and Robotics
- Material Handling Systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 30.0/15.0 A, 184T Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Shaft Design Keyed
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.40
- Package Width: 13.60
- Package Height: 13.50
- Package Weight: 71.00
Product info last updated on March 11, 2026 10:55pm UTC
Category: Motors
