Split Phase Pedestal Fan Motor, 1/4 HP, 48YX Frame, 115 AC V, 1725 RPM MPN:6K403
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2795922
Split Phase Pedestal Fan Motor, 1/4 HP, 48YX Frame, 115 AC V, 1725 RPM

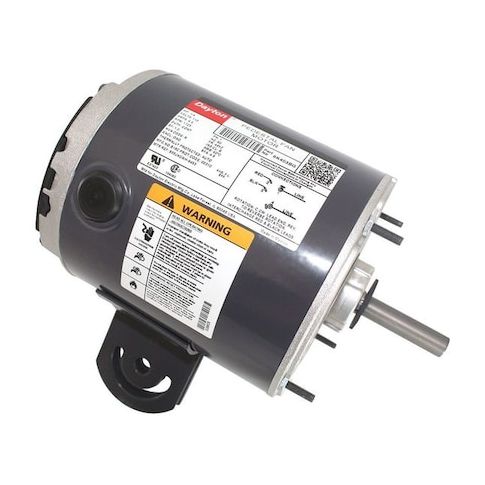

This Dayton Split Phase Pedestal Fan Motor is a reliable and efficient solution for a wide range of applications, including residential and commercial fan installations. With its 1/4 HP rating and 1725 RPM, it provides a powerful and quiet operation, making it ideal for circulating air in large spaces. The motor's open air-over design and horizontal mounting position ensure easy installation and maintenance. Suitable for continuous duty cycles, it can withstand high ambient temperatures up to 40°C, making it a durable choice for various settings, including offices, restaurants, and retail stores. Its compact size and lightweight design also make it easy to handle and transport.
Top product features:
- Split Phase Pedestal Fan Motor provides a single speed operation.
- Motor has a continuous duty cycle.
- Motor has automatic thermal protection.
Top product applications:
- Office Space Cooling
- Residential Room Cooling
- Commercial Space Ventilation
Pedestal Fan Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 4.9 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Position Horizontal, Shaft Length 2 in, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 13.50
