HVAC Motor, 1/30 HP, 3000 rpm, 115V, 3.3 MPN:71214887M
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2790173

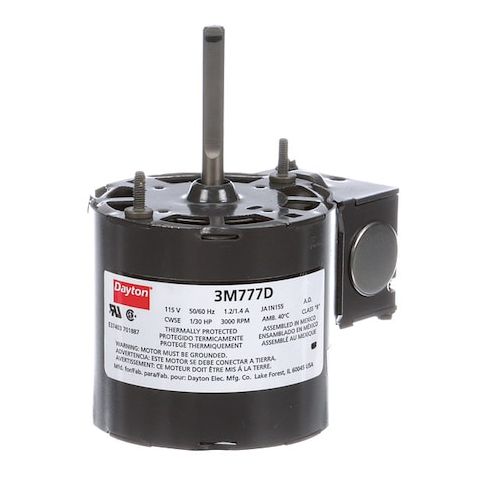

HVAC Motor, 1/30 HP, 3000 rpm, 115V, 3.3
This compact 1/30 HP HVAC motor is perfect for small applications requiring precise temperature control. Designed for continuous operation, it can withstand temperatures up to 40°C and features automatic thermal protection for added reliability. With a single-phase shaded pole design and 3000 RPM, it provides efficient and quiet performance. Suitable for use in residential and light commercial HVAC systems, this motor is ideal for applications such as small air handlers, fan coils, and rooftop units. Its compact size and low power consumption make it an excellent choice for energy-efficient and space-constrained installations.
Top product features:
- Rotates continuously at 3000 rpm
- Operates on single phase power
- Has a shaded pole motor design
Top product applications:
- HVAC blower motor in a residential air conditioning unit
- Small fan motor in a commercial or industrial ventilation system
- Low-speed fan motor in a laboratory or medical facility
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/30 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 1.2 A Full Load Amps, 3.3 Frame, Output Watts 25 W, 60/50 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 6.50
- Package Height: 6.70
- Package Weight: 3.25
Product info last updated on February 15, 2026 4:06pm UTC
Category: Motors
