Split-Phase Belt Drive Motor, 3/4 HP, 56 Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM MPN:4VAG3BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2775577
Split-Phase Belt Drive Motor, 3/4 HP, 56 Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM

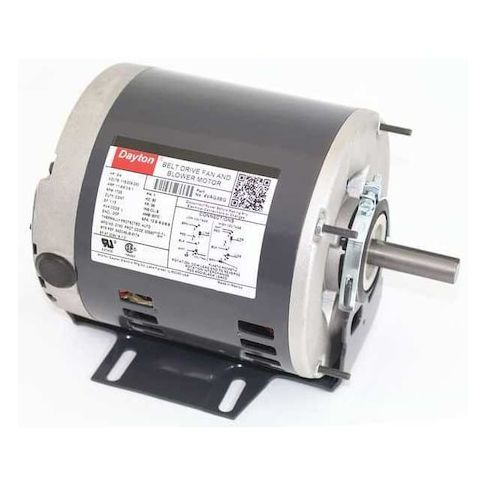

This 3/4 HP Split-Phase Belt Drive Motor from Dayton is designed for a wide range of applications, including fans and blowers. With a nameplate RPM of 1,725 and a voltage range of 115/208-230V AC, this motor provides reliable power and efficiency. Its open drip-proof enclosure and cradle base mounting make it easy to install and maintain. The motor's continuous duty cycle and thermal protection ensure reliable operation in demanding environments. Suitable for use in industrial and commercial settings, this motor is ideal for applications where a single-phase motor is required. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Split-phase design for improved starting torque and reduced wear on the motor
- One-speed operation for consistent airflow
- Open drip-proof enclosure for protection against dust and moisture
Top product applications:
- Air Handling Units
- Industrial Fans
- HVAC Systems
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 11.8/6.0-6.1 A Full Load Amps, 56 Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 24.70
Product info last updated on February 2, 2026 1:55am UTC
Category: Motors
