Capacitor-Start General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 56 Frame MPN:4K936
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2751682

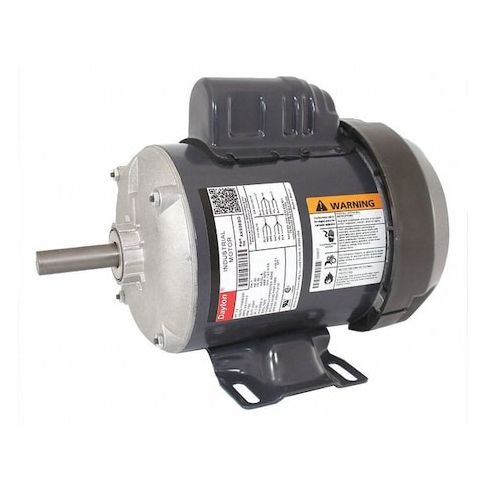

Capacitor-Start General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 56 Frame
This 1/3 hp capacitor-start general purpose motor from Dayton is designed for a wide range of applications, including industrial and commercial use. Its single-phase design and 1,725 RPM nameplate speed make it suitable for applications that require moderate speed and torque. The motor's totally enclosed fan-cooled design provides reliable operation in various environments, while its rigid base mounting type ensures easy installation. With a service factor of 1.15, this motor can handle continuous duty cycles and withstand temperatures up to 40°C. Its compact size and lightweight design make it ideal for use in tight spaces and remote locations.
Top product features:
- Totally Enclosed Fan Cooled design for improved protection against dust and moisture
- Continuous duty cycle for uninterrupted operation
- Single Phase motor design with Capacitor-Start for efficient operation
Top product applications:
- Pumps
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.0/3.0-3.0 A, 56 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 22.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 24, 2026 3:36am UTC
Category: Motors
