Washdown Motor, 3 Ph, TENV, 1/3 HP, 3500 rpm MPN:6WY29
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2741304

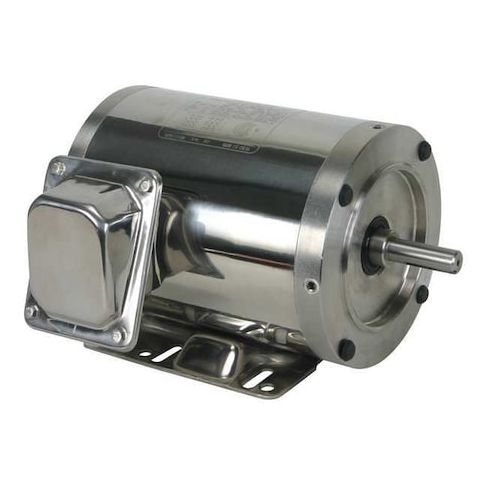

Washdown Motor, 3 Ph, TENV, 1/3 HP, 3500 rpm
This 1/3 HP, 3-phase washdown motor from Dayton is designed for heavy-duty applications in harsh environments. Suitable for use at 208V, it features a totally enclosed non-ventilated (TENV) design that protects against dust, water, and other contaminants. Ideal for use in food processing, pharmaceutical, and chemical industries, this motor provides continuous operation and meets NEMA Design B standards. With a high service factor of 1.15 and a maximum ambient temperature of 40°C, it ensures reliable performance and long lifespan. Perfect for applications requiring high hygiene and cleanliness, this motor is a reliable choice for demanding washdown environments.
Top product features:
- Three-phase motor design
- Totally enclosed non-ventilated enclosure
- Continuous duty cycle
Top product applications:
- Food Processing Machinery
- Industrial Laundry Equipment
- Chemical Plant Equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 1/3 hp HP, Nameplate RPM 3,500 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.2-1.1/0.55 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.80
- Package Width: 10.90
- Package Height: 9.10
- Package Weight: 27.90
Product info last updated on February 4, 2026 7:37am UTC
Category: Motors
