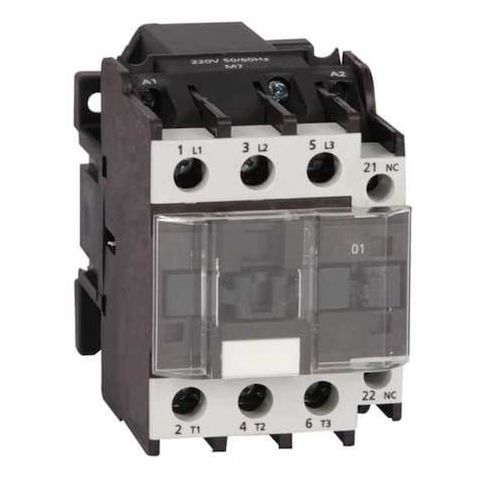

IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing MPN:6EAV8

• DAYTON IEC Magnetic Contactor is a 3-pole, 24 V AC coil, non-reversing IEC-style device rated for switching power within specified parameters. It includes one normally open auxiliary contact and is rated for operation at 50/60 Hz

• does not include surge suppression or enclosure.

  - Action: Non-Reversing

• - Poles: 3
• - Coil Voltage: 24 V AC
• - Contactor Style: IEC
• - Auxiliary Contacts: 1NO
• - Auxiliary Contact Form: 1NO
• - Embedded Surge Suppressor: No
• - Enclosure: No Enclosure
• - Frequency: 50/60 Hz
• - Standards: CSA, UL Listed
• - Depth: 3.75 in
• - Height: 2.2 in
• - Width: 2.2 in
• - Full Load Amps - Inductive: 25 A
• - Full Load Amps - Resistive: 40 A
• - Full Load Current - Inductive: 25 A
• - Full Load Current - Resistive: 40 A
• - HP @ 1 Phase - 120V: 2 hp
• - HP @ 1 Phase - 230V: 3 hp
• - HP @ 1 Phase - 240V: 3 hp
• - HP @ 3 Phase - 208V: 5 hp
• - HP @ 3 Phase - 240V: 7.5 hp
• - HP @ 3 Phase - 480V: 15 hp
• - HP @ 3 Phase - 575V: 20 hp
• - Includes Auxiliary Contacts: Yes
• - NEMA Enclosure Rating: No Enclosure
• - Reversing: No
• - Reversing Capability: Non-Reversing
• - Item: IEC Magnetic Contactor
