Washdown Motor, 3 Ph, TEFC, 1 HP, 1750 rpm MPN:6WY58
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2699225

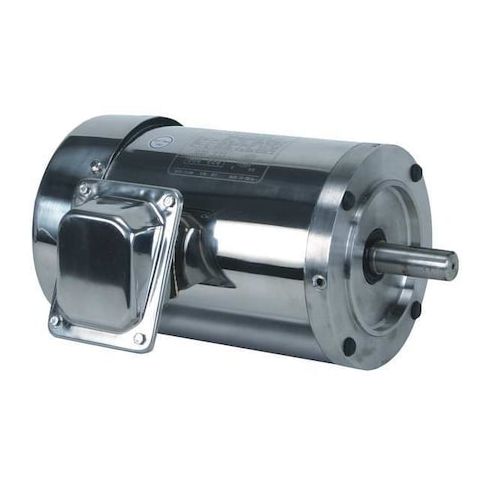

Washdown Motor, 3 Ph, TEFC, 1 HP, 1750 rpm
This 1 HP, 3-phase washdown motor from Dayton is designed for use in harsh environments where high-pressure washdowns are required. Its totally enclosed fan-cooled (TEFC) design and NEMA Design B rating ensure reliable operation in temperatures up to 40°C. The motor's continuous duty cycle and 1.15 service factor make it suitable for demanding applications in food processing, pharmaceutical, and other industries. Its compact size and CW/CCW rotation make it easy to integrate into existing systems, while its 1-day lead time and single-unit minimum order quantity make it a convenient choice for businesses of all sizes.
Top product features:
- Totally Enclosed Fan Cooled design for protection from environmental contaminants
- Continuous duty cycle operation for long-term reliability
- Three-phase motor design for efficient power utilization
Top product applications:
- Food Processing
- Chemical Plants
- Pharmaceutical Manufacturing
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.9/1.5 A, 143TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.10
- Package Width: 11.50
- Package Height: 10.20
- Package Weight: 44.10
Product info last updated on January 31, 2026 2:51am UTC
Category: Motors
