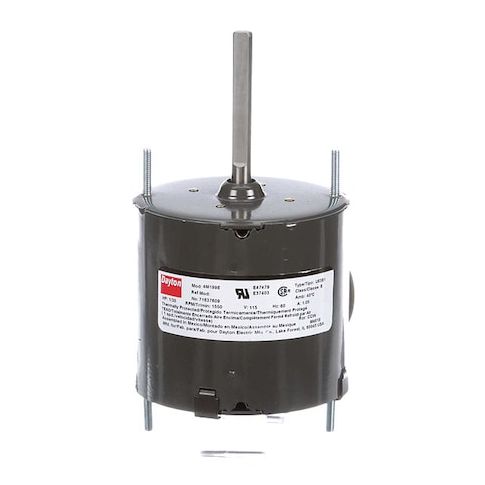

HVAC Motor, 1/30 HP, 1550 rpm, 115V, 3.3 MPN:71637609M
HVAC Motor, 1/30 HP, 1550 rpm, 115V, 3.3
This 1/30 HP HVAC motor is a reliable and efficient solution for a variety of applications, including residential and commercial heating and cooling systems. With a single-phase shaded pole design and 1550 rpm, it provides consistent performance and quiet operation. Its compact 3.3 frame size makes it ideal for use in tight spaces, and its totally enclosed air-over design ensures durability and protection from the elements. Suitable for continuous duty cycles in temperatures up to 40°C, this motor is a cost-effective and dependable choice for a range of HVAC applications, including fan motors, pump motors, and other low-power applications.
Top product features:
- Single Phase Design
- Motor Design Shaded Pole
- Totally Enclosed Air-Over Motor Enclosure
Top product applications:
- Air Handler Units
- Pumps and Fans in Commercial and Residential Applications
- Small HVAC Systems and Accessories
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/30 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 1.2 A Full Load Amps, 3.3 Frame, Output Watts 25 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 8.20
- Package Height: 3.80
- Package Weight: 3.85
Product info last updated on February 1, 2026 11:19am UTC
Category: Motors
