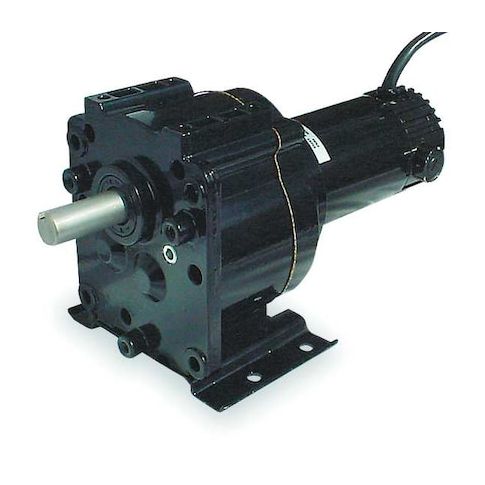

DC Gearmotor, 227 in-lb Max. Torque, 5.4 RPM Nameplate RPM, 90V DC Voltage MPN:6A193
DC Gearmotor, 227 in-lb Max. Torque, 5.4 RPM Nameplate RPM, 90V DC Voltage
DC Gearmotor, Shaft Orientation Parallel, Motor Enclosure Totally Enclosed Nonventilated, Operating Voltage 90V DC, Motor Type Permanent Magnet DC, Nameplate Speed 5.4 RPM, Maximum Torque 227 in-lb, Overhung Load Capacity 150 lb, Rotation CW/CCW, Output Shaft Height 3.5 in, Mounting Orientation Any Angle, Gear Ratio 336:1, Input Horsepower 1/20 hp, Output Shaft Diameter 5/8 in, Bearing Type Ball on Motor, Needle Roller and Thrust Balls on Case
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.80
- Package Width: 8.30
- Package Height: 6.50
- Package Weight: 12.00
Product info last updated on January 23, 2026 8:56am UTC
Category: Motors
