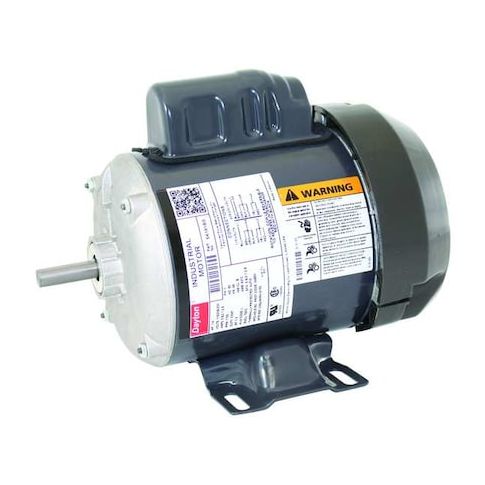

Capacitor-Start General Purpose Motor, 1/4 hp HP, 48 Frame, 115/208-230V AC Voltage MPN:5K191BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2671961
Capacitor-Start General Purpose Motor, 1/4 hp HP, 48 Frame, 115/208-230V AC Voltage
This 1/4 horsepower capacitor-start general purpose motor from Dayton is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/208-230V AC environments, it offers a robust design with a totally enclosed fan-cooled enclosure and rigid base mounting for optimal performance and durability. With a continuous duty cycle and auto thermal protection, this motor is ideal for applications such as pumps, fans, and conveyor systems. Its compact size and low maintenance requirements make it a cost-effective choice for many industries, including manufacturing, food processing, and HVAC.
Top product features:
- Totally Enclosed Fan Cooled motor design provides a safe and efficient operating environment.
- Single Phase, Capacitor-Start motor design allows for efficient operation at a wide range of voltages.
- Continuous duty cycle enables the motor to operate for extended periods without overheating.
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 5.6/2.8-2.7 A, 48 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 18.83
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on January 20, 2026 12:11am UTC
Category: Motors
