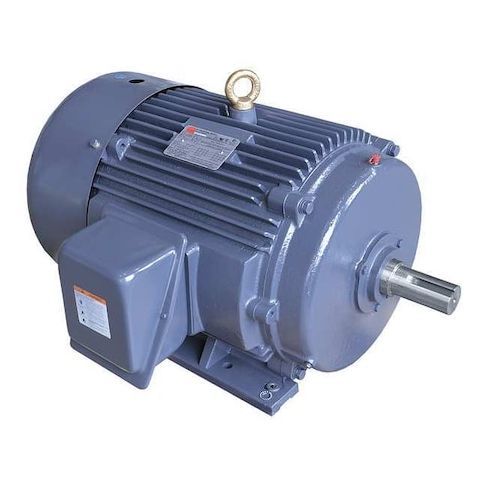

Three-Phase General Purpose Motor, 40 HP, 324TS Frame, 230/460V AC Voltage, 3560 Nameplate RPM MPN:194167.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2664085
Three-Phase General Purpose Motor, 40 HP, 324TS Frame, 230/460V AC Voltage, 3560 Nameplate RPM
This 40 HP three-phase general purpose motor is designed for heavy-duty applications requiring continuous duty operation. With a nameplate RPM of 3560 and a rigid base motor mounting type, it provides reliable and efficient performance in a variety of settings. The totally enclosed fan cooled motor enclosure design ensures optimal cooling and protection from environmental factors. Suitable for use in industrial processes, manufacturing facilities, and other high-demand environments, this motor offers a high nominal efficiency of 92.4% and is CE, CSA, and UL certified for safe and reliable operation.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Totally enclosed fan cooled design provides a safe and reliable operating environment.
- Ball bearings enable smooth and quiet motor operation.
Top product applications:
- Industrial conveyor systems
- Pumping stations
- Water treatment plants
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 40 HP, Nameplate RPM 3560, Frame 324TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 91.0/45.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 36.20
- Package Height: 27.00
- Package Weight: 713.00
Product info last updated on March 16, 2026 4:36pm UTC
Category: Motors
