4 Mount Holes, Square, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Eccentric Locking Collar Locking MPN:3FCY9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2633443

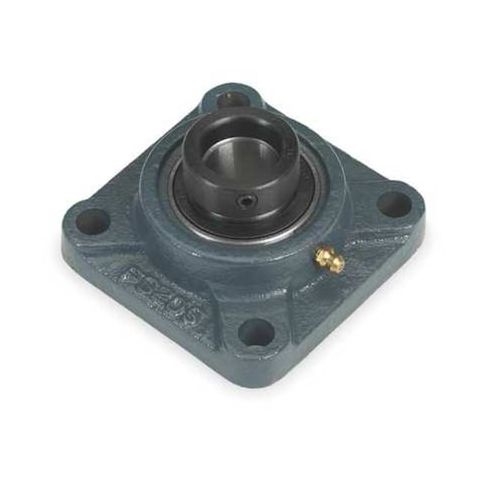

4 Mount Holes, Square, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Eccentric Locking Collar Locking
The Dayton 4-Bolt Flange Bearing is a robust and reliable solution for applications in highly dusty and dirty environments. With a maximum temperature rating of 200°F and a maximum speed of 6,500 RPM, this bearing is designed to withstand demanding conditions. The radial ball bearing insert is made of alloy steel and features a single sealed closure for added protection. Suitable for use in a variety of applications, including industrial machinery, agricultural equipment, and construction vehicles, this bearing provides long-lasting performance and reduced maintenance needs. Its compact design and cast iron housing make it an ideal choice for space-constrained installations.
Top product features:
- 4-Bolt flange design provides a secure mounting system for the bearing.
- Single sealed closure protects the bearing from contaminants and debris.
- Radial ball bearing design allows for smooth rotation and high load capacity.
Top product applications:
- Pump and motor mounting in dirty and dusty environments
- High-speed machinery applications requiring a reliable seal
- Heavy-duty equipment such as gearboxes and conveyor systems
4 Bolt Flange Bearing, Back Side to Center Width 0.748 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 7/8 in, Closure Single Sealed, Expansion Type Fixed, For Environment Highly Dusty and Dirty, Housing Material Cast Iron, Housing Type Square, Included Bearing WJB HC205-16 Insert Bearing, Lubricant Material Chevron SRI 2, NLGI #2 Equivalent, Maximum Speed 6,500 RPM Grease, Maximum Temperature 200 Degrees F
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 2.60
- Package Height: 3.90
- Package Weight: 1.80
Product info last updated on March 2, 2026 4:45pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
