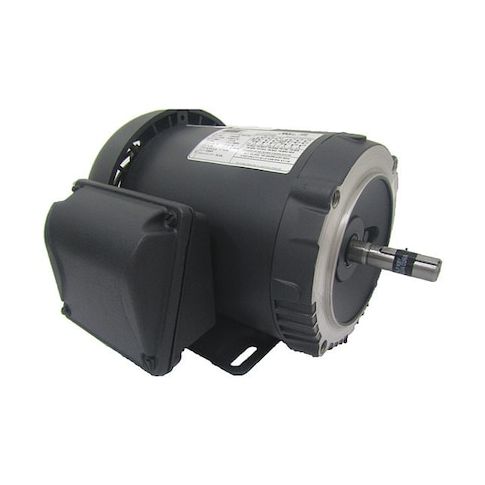

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 1135 Nameplate RPM MPN:4THZ5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2632007
Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 1135 Nameplate RPM
This 3/4 HP three-phase general purpose motor from Dayton is a reliable and efficient solution for a variety of applications. Suitable for use in industrial settings, the motor features a totally enclosed fan cooled design and rigid base for added stability. With a nameplate RPM of 1135 and a voltage range of 230/460V AC, this motor is ideal for continuous duty applications. Its high service factor of 1.15 and ball bearings ensure long motor life and reduced maintenance. Perfect for use in manufacturing, processing, and other high-demand industries, this motor is a cost-effective and durable choice.
Top product features:
- Three-phase design for efficient operation
- Totally enclosed fan-cooled motor enclosure for protection and cooling
- Ball bearings for smooth and durable motor operation
Top product applications:
- Industrial conveyor systems
- Pumping stations
- Centrifugal compressors
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3/4 HP, Nameplate RPM 1135, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.0/1.5 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 75.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.20
- Package Width: 11.80
- Package Height: 8.30
- Package Weight: 34.23
Product info last updated on February 17, 2026 6:53am UTC
Category: Motors
