IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 4 P, Non-Reversing, Screw MPN:6EAY3
Free Shipping
In Stock

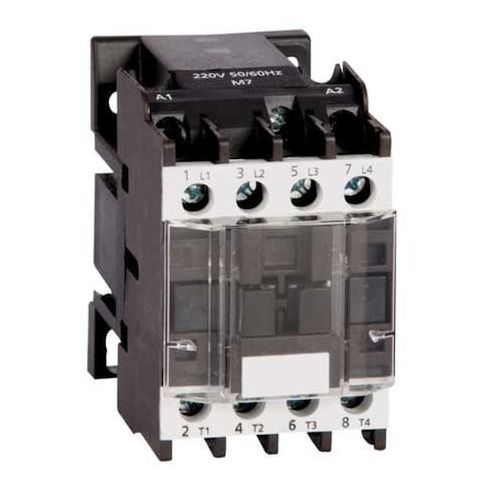

The DAYTON IEC Magnetic Contactor is a reliable and efficient switching device designed for a variety of applications. It operates with a 120 V AC coil and features 4 poles, making it suitable for use in industrial control systems, HVAC, and other applications requiring a high level of switching precision. The contactor's non-reversing action ensures safe and reliable operation, while its 2NC/2NO main contact configuration provides a secure connection. With a compact design and screw terminals, this contactor is easy to install and integrate into existing systems, making it an ideal choice for a range of industrial and commercial applications.
Top product features:
- Operates with a 120 V AC coil
- Switching device designed with a 4-pole configuration
- Includes auxiliary contacts
Top product applications:
- Motor Control for HVAC Systems
- Industrial Automation and Control Systems
- Power Distribution and Switching in Commercial Buildings
DAYTON IEC Magnetic Contactor is a 4-pole, coil-driven switching device designed under the IEC style. It operates with a 120 V AC coil and is non-reversing with screw terminals. The unit includes auxiliary contacts (4) and a main contact configuration of 2NC/2NO. It has no embedded surge suppressor and no enclosure, and is rated for operation within the specified frequency ranges
- complies with CSA and UL standards.
- Contactor style: IEC
- Item: IEC Magnetic Contactor
- - Poles: 4
- - Coil voltage: 120 V AC
- - Action/Reversing: Non-Reversing
- Reversing: No
- - Auxiliary contacts: Yes (4 total)
- Main contact configuration: 2NC/2NO
- - Terminal connection: Screw
- - Enclosure: No Enclosure
- Embedded surge suppressor: No
- - Enclosure rating: No Enclosure
- - Dimensions (D x W x H): 3.18 in depth
- 1.77 in width
- 1.77 in height
- - Frequency: 50/60 Hz
- - Full Load Amps: Inductive 12 A
- Resistive 25 A
- - Full Load Current: Inductive 12 A
- Resistive 25 A
- - Horsepower (Single Phase): 120V 1 hp
- 230V 2 hp
- 240V 2 hp
- - Standards: CSA, UL Listed
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 3.40
- Package Height: 2.00
- Package Weight: 0.20
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
