Three-Phase General Purpose Motor, 1 HP, 143-5T/56HZ Frame, 230/460V AC Voltage, 1165 Nameplate RPM MPN:2NKX5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2606265
Three-Phase General Purpose Motor, 1 HP, 143-5T/56HZ Frame, 230/460V AC Voltage, 1165 Nameplate RPM

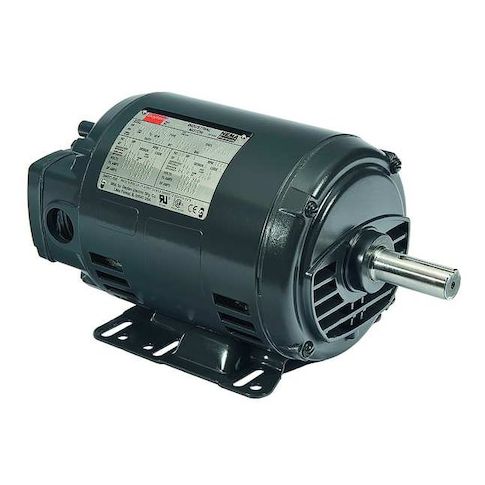

This three-phase general purpose motor from Dayton is designed for a wide range of applications, including industrial and commercial use. With a 1 HP rating and 1165 nameplate RPM, it provides reliable and efficient power for machinery and equipment. The open drip-proof motor enclosure design and rigid base mounting type ensure easy installation and durability. The motor's high service factor and ball bearings provide extended lifespan and reduced maintenance. Suitable for continuous duty, it's ideal for applications such as pumps, fans, and conveyor systems, and is compliant with CSA and UL standards.
Top product features:
- Three-phase design for efficient power transmission
- Open drip-proof motor enclosure for reduced risk of electrical shock
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Industrial Laundry Equipment
- Pumps and Pumps Systems
- Fans and Blowers
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 HP, Nameplate RPM 1165, Frame 143-5T/56HZ, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 4.0/2.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, Continuous Duty, 1,101-1,200, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 11.50
- Package Height: 11.00
- Package Weight: 43.78
Product info last updated on January 24, 2026 1:15am UTC
Category: Motors
