Auger Drive Motor, Capacitor-Start, 1/2 HP, 115/230V AC, 1, 725 Nameplate RPM, 56YZ Frame MPN:3K995
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2580986

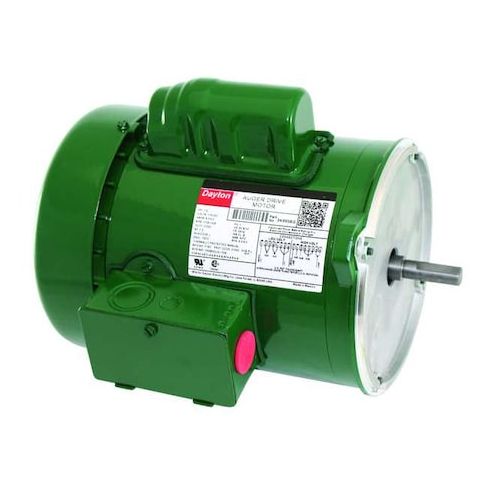

Auger Drive Motor, Capacitor-Start, 1/2 HP, 115/230V AC, 1, 725 Nameplate RPM, 56YZ Frame
This Dayton Auger Drive Motor is a reliable and efficient solution for various applications, including agricultural and industrial settings. Its capacitor-start design and 1/2 HP rating provide consistent performance and durability. With a nameplate RPM of 1,725 and a 56YZ frame, this motor is designed for continuous duty cycles and can operate in a range of voltages, including 115/230V AC. Its totally enclosed fan-cooled design and steel frame ensure optimal heat dissipation and protection from the elements, making it suitable for use in harsh environments. Ideal for use in auger drives, pumps, and other machinery.
Top product features:
- Totally Enclosed Fan Cooled motor design for increased durability and reliability
- Motor shaft rotation in both clockwise and counterclockwise directions
- Capacitor-Start motor design for efficient and reliable operation
Top product applications:
- Grain Handling
- Aeration Fans
- Pumping Systems
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.0/4.0 A, 56YZ Frame, 60/50 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 28.60
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 1, 2026 3:09am UTC
Category: Motors
