Three-Phase General Purpose Motor, 1/4 HP, 42CZ Frame, 230/460V AC Voltage, 1, 725 Nameplate RPM MPN:3N841
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2578195
Three-Phase General Purpose Motor, 1/4 HP, 42CZ Frame, 230/460V AC Voltage, 1, 725 Nameplate RPM

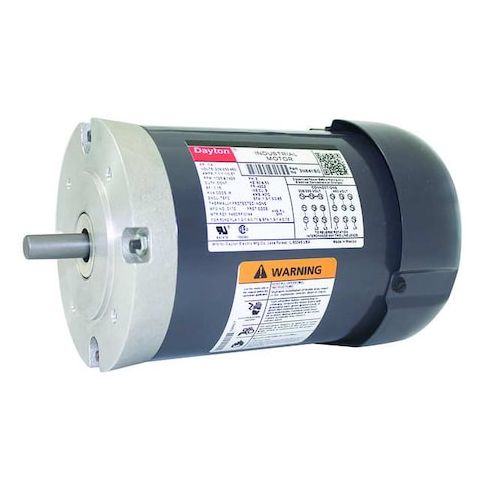

This three-phase general purpose motor from Dayton is designed for a wide range of industrial applications, including manufacturing, processing, and material handling. With a 1/4 HP rating and 1,725 nameplate RPM, it provides efficient power for continuous duty operations. The totally enclosed fan cooled motor enclosure ensures reliable performance in harsh environments, while the ball bearings and steel frame provide durability and resistance to wear. Suitable for use in applications such as conveyor systems, pumps, and fans, this motor offers a high level of efficiency and reliability, making it an ideal choice for industrial operations.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Pump and Fan Applications
- Conveyor Systems
- Material Handling Equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/4 HP, Nameplate RPM 1,725, Frame 42CZ, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 1.2/0.60 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.70
- Package Width: 8.20
- Package Height: 8.10
- Package Weight: 17.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 5, 2026 8:14am UTC
Category: Motors
