DC Motor, PM, TENV, 1/2 HP, 1800 rpm, 12VDC MPN:108920.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2577355

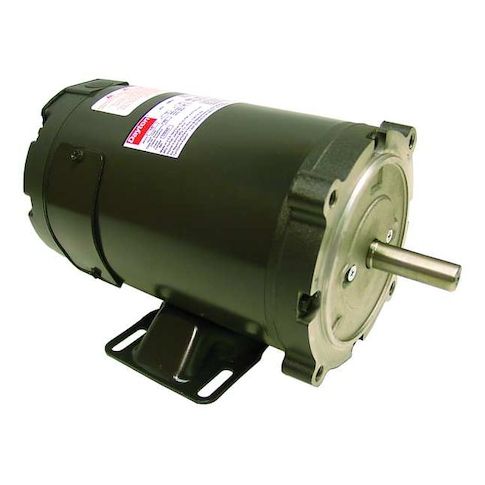

DC Motor, PM, TENV, 1/2 HP, 1800 rpm, 12VDC
This 1/2 HP, 12VDC DC Permanent Magnet Motor from Dayton is a reliable and efficient solution for a variety of applications. Suitable for continuous duty cycles, it offers a high torque output of 4.4 in-lb and a nameplate RPM of 1,800. Its totally enclosed non-ventilated (TENV) design provides protection from environmental factors, while its ball bearings ensure smooth operation. Ideal for use in industrial automation, robotics, and material handling systems, this motor is a cost-effective and space-saving option for applications requiring a compact and high-performance motor. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Permanent Magnet DC motor design for high efficiency and reliability
- Totally Enclosed Nonventilated (TENV) enclosure for protection from dust and moisture
- Ball bearings for smooth and quiet operation
Top product applications:
- Robotics and automation systems
- Medical equipment and devices
- Industrial control systems
DC Permanent Magnet Motor, Motor Design Permanent Magnet, 1/2 HP, Nameplate RPM 1,800 RPM, Voltage 12V DC, 39.0 A Full Load Amps, 56C Frame, Full Load Torque 4.4 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in, Brush Type External
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 10.80
- Package Height: 10.80
- Package Weight: 32.00
Product info last updated on January 26, 2026 11:15pm UTC
Category: Motors
