Washdown Motor, 3 Ph, TENV, 3/4 HP, 3500 rpm MPN:1TTA3BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2563276

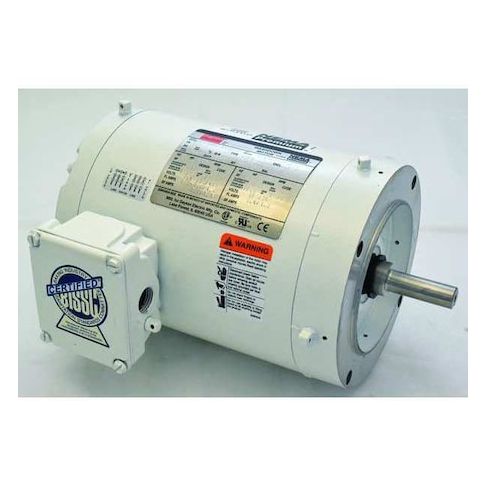

Washdown Motor, 3 Ph, TENV, 3/4 HP, 3500 rpm
The Dayton Washdown Motor is a reliable and efficient solution for a variety of applications requiring high-torque operation in harsh environments. Its 3-phase design and totally enclosed non-ventilated (TENV) enclosure make it ideal for use in washdown applications, such as food processing, pharmaceutical manufacturing, and chemical plants. With a continuous duty cycle and high service factor, this motor can handle demanding tasks while maintaining a long lifespan. Its compact 56C frame and CW/CCW rotation make it easy to integrate into existing systems, providing a cost-effective solution for a range of industries and applications.
Top product features:
- Three Phase Operation
- Totally Enclosed Non-Ventilated (TENV) Design
- Continuous Duty Cycle
Top product applications:
- Pumps and water treatment systems
- Food processing and preparation equipment
- Pharmaceutical manufacturing machinery
Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 3,500 RPM, Voltage 230/460V AC, Full Load Amps 2.0/1.0 A, 56C Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 11.50
- Package Height: 11.20
- Package Weight: 30.89
Product info last updated on February 24, 2026 9:05pm UTC
Category: Motors
