C-Frame Motor, Auto, Shaded Pole, 1 In. L MPN:5M064E
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2558595

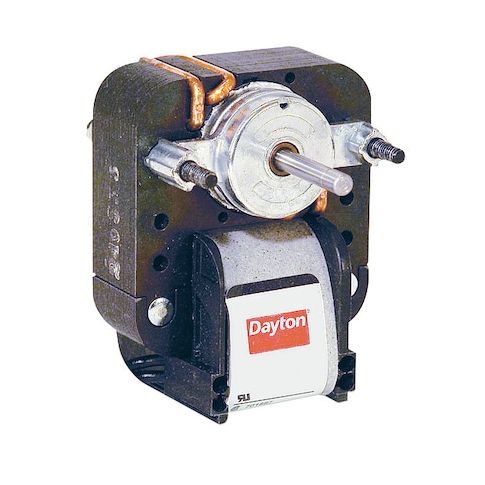

C-Frame Motor, Auto, Shaded Pole, 1 In. L
This compact C-Frame Motor is ideal for a variety of applications, including small machinery, appliances, and automation systems. With a single-phase design and 1/20 horsepower output, it's perfect for low-power applications. The motor's 3,000 RPM nameplate speed and continuous duty cycle make it suitable for demanding tasks. Its open-air design and stud mounting type provide easy installation and maintenance. Additionally, the motor's thermal protection and insulation ensure reliable operation in temperatures up to 40 degrees Celsius. Suitable for use in 120V AC environments, this motor is a reliable and efficient solution for a wide range of applications.
Top product features:
- Auto-starting
- Shaded pole design
- Continuous duty cycle
Top product applications:
- HVAC applications
- Pumps and Fans
- Conveyor Systems
C-Frame Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 120V AC, 2.8 A Full Load Amps, C-Frame Frame, Output Watts 45W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection One-Shot, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.72
- Package Width: 3.15
- Package Height: 2.95
- Package Weight: 3.53
Product info last updated on February 22, 2026 4:19am UTC
Category: Motors
