Pedestal Fan Motor, 1/4 hp MPN:3M504
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2548743

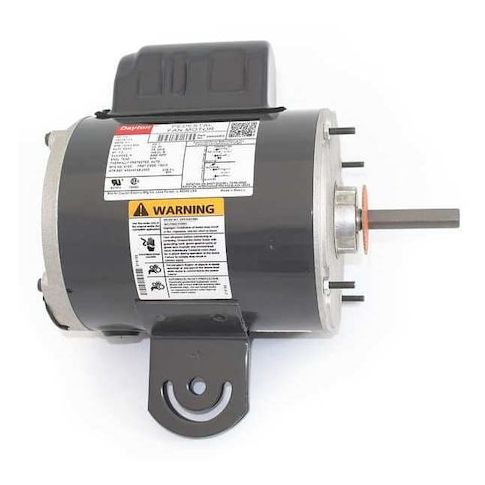

Pedestal Fan Motor, 1/4 hp
Upgrade your cooling systems with the Dayton Pedestal Fan Motor, a reliable and efficient solution for a variety of applications. Ideal for use in residential, commercial, or industrial settings, this 1/4 HP motor provides continuous operation at a maximum ambient temperature of 40°C. With a single-phase, permanent split capacitor design and totally enclosed air-over enclosure, this motor offers long-lasting performance and quiet operation. Perfect for pedestal fans, exhaust fans, and other ventilation systems, this motor is a cost-effective and durable choice for any cooling need. Its compact design and easy installation make it a great addition to any space.
Top product features:
- Single Phase operation allows for use in a variety of applications
- Permanent Split Capacitor motor design provides efficient operation
- Totally Enclosed Air-Over motor enclosure design protects against environmental factors
Top product applications:
- Residential Pedestal Fans
- Commercial Pedestal Fans
- Industrial Ventilation Systems
Pedestal Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,075, No. of Speeds 2, Voltage 115V AC, 3.1 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Position Horizontal, Shaft Length 2 1/2 in, Shaft Dia. 1/2 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 15.40
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 17, 2026 8:49am UTC
Category: Motors
