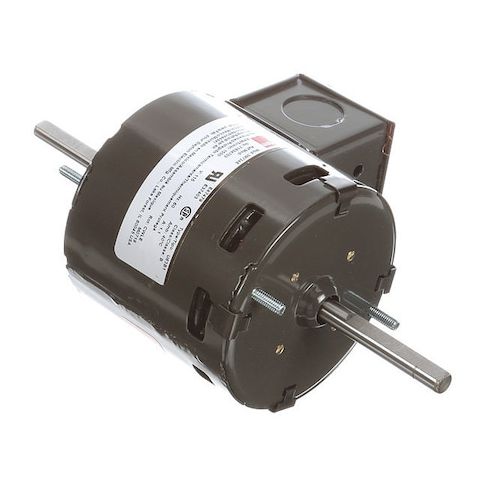

HVAC Motor, 1/40 HP, 1550 rpm, 115V, 3.3 MPN:71634703M
HVAC Motor, 1/40 HP, 1550 rpm, 115V, 3.3
This Dayton HVAC Motor is a reliable and efficient solution for a wide range of applications, including residential and commercial heating and cooling systems. With a 1/40 HP rating and 1550 rpm, it provides precise control and quiet operation. The motor's shaded pole design and steel frame ensure durability and long lifespan. Suitable for continuous duty cycles in ambient temperatures up to 40°C, it's ideal for use in air handlers, fan coils, and other HVAC equipment. Its compact size and lightweight design make it easy to install and maintain, providing a cost-effective solution for various HVAC applications.
Top product features:
- Single Phase Design
- Shaded Pole Motor Design
- Continuous Duty Cycle
Top product applications:
- HVAC Packaged Unit Fan Motor
- Small Fan Motor for Commercial or Residential Applications
- Remote Mount Fan Motor for Industrial or Commercial Use
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/40 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 1.15 A Full Load Amps, 3.3 Frame, Output Watts 19 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 4.30
- Package Height: 9.50
- Package Weight: 4.00
Product info last updated on February 3, 2026 1:46am UTC
Category: Motors
