Capacitor-Start Belt Drive Motor, 1/3 HP, 48Y Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM MPN:4VAG5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2541612

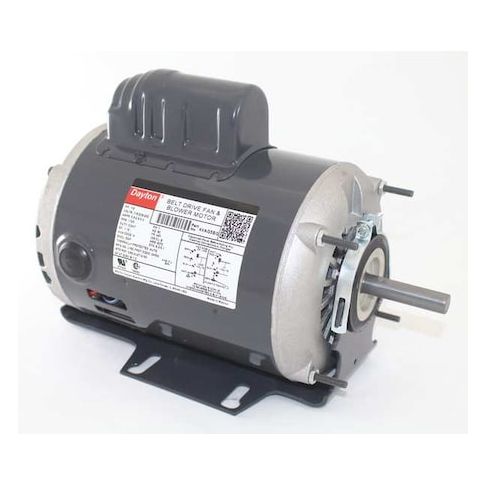

Capacitor-Start Belt Drive Motor, 1/3 HP, 48Y Frame, 115/208-230V AC Voltage, 1, 725 Nameplate RPM
This 1/3 HP capacitor-start belt drive motor from Dayton is designed for efficient and reliable operation in a variety of applications. Its single-phase motor design and 1,725 RPM nameplate speed make it ideal for use in fans, blowers, and other equipment that requires a high level of airflow. With a 1.15 service factor and continuous duty cycle, this motor can handle demanding tasks and withstand high temperatures up to 60°C. Its compact 48Y frame and cradle base mounting make it easy to install in tight spaces, while its open drip-proof enclosure provides protection against dust and moisture.
Top product features:
- Capacitor-start design for improved starting torque and efficiency
- Single-phase operation for use in standard household or commercial applications
- Open drip-proof enclosure for protection against dust and debris
Top product applications:
- HVAC Systems
- Industrial Fans
- Commercial Ventilation Systems
Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 5.9/2.8-3.0 A Full Load Amps, 48Y Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 18.00
Product info last updated on January 19, 2026 11:27pm UTC
Category: Motors
