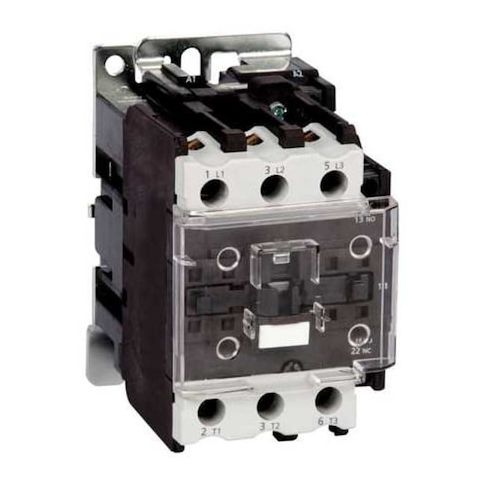

IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw MPN:6EAR1
Free Shipping
In Stock
The DAYTON IEC Magnetic Contactor is a reliable and efficient device for controlling electrical circuits in various applications. Its non-reversing action ensures smooth operation, while its 120V AC coil voltage and 1NO/1NC auxiliary contact configuration provide flexibility and convenience. Suitable for use with inductive and resistive loads, this contactor can handle up to 50A inductive and 70A resistive loads, making it ideal for single-phase and three-phase systems. With horsepower ratings up to 40hp at 480V AC, this contactor is perfect for use in industrial settings, such as manufacturing, HVAC, and water treatment facilities, where reliable and efficient control is crucial.
Top product features:
- Non-Reversing Action: This feature indicates the directionality of the current flow through the contactor.
- Operates on a standard 120V AC power supply.
- Compatible with inductive loads of up to 50A and resistive loads of up to 70A.
Top product applications:
- Motor control circuits
- Industrial automation systems
- Power distribution panels
The DAYTON - IEC Magnetic Contactor is a non-reversing, screw terminal connection type device that operates with a coil voltage of 120V AC. This contactor is designed to handle both inductive and resistive loads, with full load amps for inductive at 50 A and resistive at 70 A. It features an auxiliary contact configuration of 1NO/1NC, meaning it has one normally open and one normally closed contact. The product does not include an enclosure as per its NEMA rating.
Key Features:
- - Non-Reversing Action: This feature indicates the directionality of the current flow through the contactor.
- - Coil Voltage: Operates on a standard 120V AC power supply.
- - Full Load Amps: Rated for operation with inductive loads of up to 50A and resistive loads of up to 70A.
- - Auxiliary Contact Configuration (1NO/1NC): Provides additional circuit flexibility by having one normally open and one normally closed contact.
- - Horsepower Ratings: Compatible within the specified ranges, including single phase (3 hp at 120V AC &7.5 hp at 240V AC) and three-phase (15 hp at both 208V &240V AC
- 40 hp at both480v&600vAC).
- - Standards Compliance: Complies with CSA and UL Listed standards as per industry regulations.
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 5.20
- Package Height: 3.00
- Package Weight: 1.80
