Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:6K831
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2522317

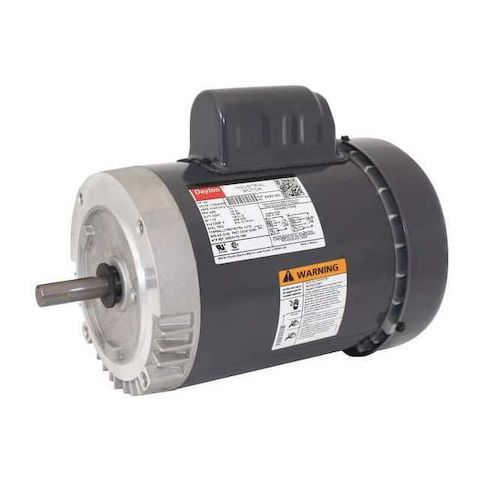

Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/208-230V AC Voltage, 56C Frame
The Dayton Capacitor-Start General Purpose Motor is a reliable and efficient solution for a wide range of applications. Designed for continuous duty, this motor operates at 3,450 RPM and delivers 3/4 hp of power. Suitable for use in 115/208-230V AC environments, it features a 56C frame and a totally enclosed fan-cooled design for optimal performance and protection. The motor's auto thermal protection and 1.15 service factor ensure reliable operation in demanding conditions. Ideal for use in industrial settings, the Capacitor-Start General Purpose Motor is a versatile and cost-effective solution for applications requiring high torque and efficiency.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and reliable operating environment.
- Continuous duty cycle allows for uninterrupted operation.
- Single phase motor design with capacitor-start allows for efficient power usage.
Top product applications:
- Air Compressor
- Pumps and Water Treatment Equipment
- Industrial Fans and Blowers
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.4/5.3-5.2 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
Product info last updated on February 11, 2026 3:45am UTC
Category: Motors
