Agricultural Fan Motor, Permanent Split Capacitor, 1/3 HP, 115/230V AC, 1, 100 Nameplate RPM MPN:1YBA4BG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2516805

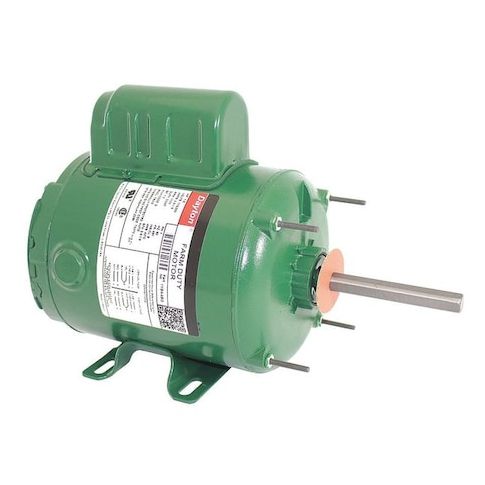

Agricultural Fan Motor, Permanent Split Capacitor, 1/3 HP, 115/230V AC, 1, 100 Nameplate RPM
The Dayton Agricultural Fan Motor is a reliable and efficient solution for farm and agricultural applications. With a permanent split capacitor design, this single-phase motor provides consistent performance and long lifespan. Its 1/3 horsepower rating and 1,100 RPM make it suitable for a variety of tasks, including ventilation and cooling in barns, greenhouses, and other agricultural settings. The motor's rugged design and totally enclosed air-over enclosure ensure optimal protection against dust and moisture, making it an ideal choice for harsh farm environments. Easy to install and maintain, this motor provides years of trouble-free service.
Top product features:
- Permanent Split Capacitor motor design
- Totally Enclosed Air-Over motor enclosure design
- Continuous duty cycle operation
Top product applications:
- Greenhouse ventilation
- Drying crops with aeration
- Ventilation for livestock housing
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,100 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.9/1.9 A, 48Y Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.80
- Package Width: 9.60
- Package Height: 10.60
- Package Weight: 16.80
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on February 26, 2026 12:18pm UTC
Category: Motors
