4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw MPN:3FCX4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2516044

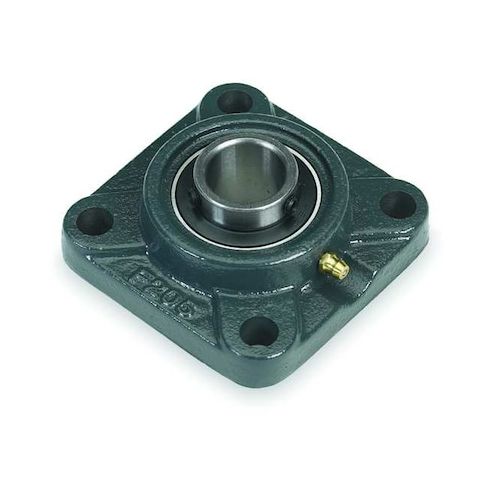

4 Holes, Square Housing, 4 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw
The Dayton 4-Bolt Flange Bearing is a reliable and durable solution for applications requiring high-speed operation in harsh environments. Designed for use in highly dusty and dirty settings, this bearing features a single sealed closure and is constructed with a cast iron housing and alloy steel insert. With a maximum speed of 6,500 RPM and a temperature rating of 200°F, this bearing is suitable for a range of applications including industrial machinery, equipment, and manufacturing processes. Its compact design and fixed expansion type make it an ideal choice for applications requiring precise movement and minimal vibration.
Top product features:
- Radial ball bearing design provides smooth rotation and minimal friction in highly dusty and dirty environments.
- Single sealed closure protects the bearing from contaminants and extends its lifespan.
- Cast iron housing provides a durable and rigid structure that supports the bearing and resists deformation under load.
Top product applications:
- Heavy machinery assembly
- Pump and motor mounting
- Conveyor belt drives
4 Bolt Flange Bearing, Back Side to Center Width 0.63 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 7/8 in, Closure Single Sealed, Expansion Type Fixed, For Environment Highly Dusty and Dirty, Housing Material Cast Iron, Housing Type Square, Included Bearing WJB UC205-16 Insert Bearing, Lubricant Material Chevron SRI 2, NLGI #2 Equivalent, Maximum Speed 6,500 RPM Grease, Maximum Temperature 200 Degrees F
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.60
- Package Height: 3.90
- Package Weight: 1.35
Product info last updated on February 8, 2026 5:52pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
