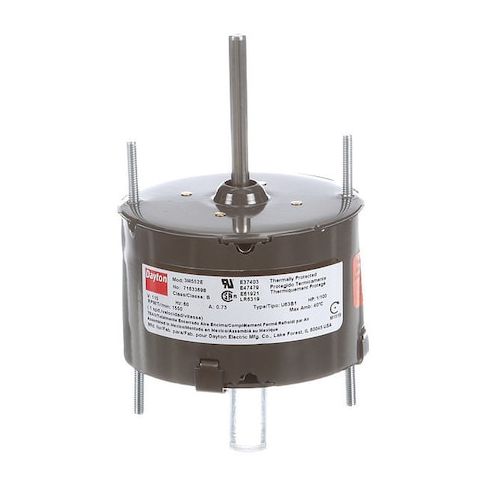

HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3 MPN:71633698M
HVAC Motor, 1/100 HP, 1550 rpm, 115V, 3.3
This Dayton HVAC motor is a reliable and efficient solution for various applications, including residential and commercial heating and cooling systems. With a 1/100 HP rating and 1550 rpm speed, it provides precise control and gentle operation. Its single-phase design and shaded pole motor make it suitable for a wide range of uses, from small fan coils to air handling units. The motor's compact 3.3 frame size and low 7.4W output make it an ideal choice for energy-conscious installations, while its continuous duty cycle and thermal protection ensure reliable operation in demanding environments.
Top product features:
- Totally Enclosed Air-Over Motor Enclosure Design for protection from environmental contaminants
- Shaded Pole Motor Design for efficient and reliable operation
- Continuous Duty Cycle for prolonged use without overheating
Top product applications:
- Small residential air conditioning units
- Window air conditioners
- Portable air purifiers
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/100 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 0.60 A Full Load Amps, 3.3 Frame, Output Watts 7.4 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 4.80
- Package Height: 3.70
- Package Weight: 2.30
Product info last updated on January 28, 2026 9:11pm UTC
Category: Motors
