Split-Phase Belt Drive Motor, 1/4, 1/8 HP, 56Z Frame, 115V AC Voltage, 1, 725/1, 140 Nameplate RPM MPN:6K425
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2491973

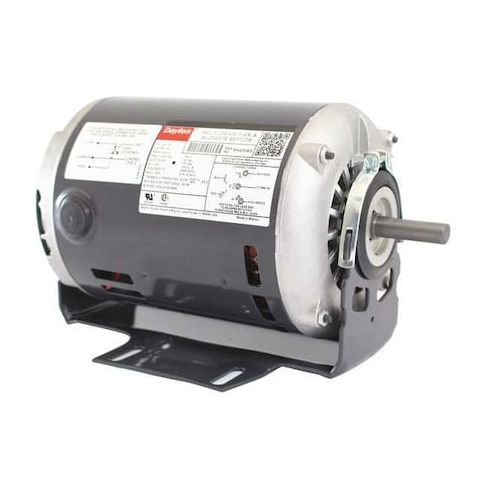

Split-Phase Belt Drive Motor, 1/4, 1/8 HP, 56Z Frame, 115V AC Voltage, 1, 725/1, 140 Nameplate RPM
This Dayton Split-Phase Belt Drive Motor is a reliable and efficient solution for various applications, including fans and blowers. With a 1/4 or 1/8 horsepower rating and a 56Z frame, it offers a compact design for easy installation in tight spaces. The motor operates at 1,725/1,140 RPM and can handle continuous duty cycles, making it suitable for commercial and industrial use. Its open drip-proof enclosure protects against dust and water, while the auto thermal protection ensures safe operation. Ideal for use in HVAC systems, ventilation, and material handling equipment, this motor provides reliable performance and long-lasting durability.
Top product features:
- Split-Phase Belt Drive Motor design for efficient power transmission
- Two-speed capability with nameplate RPM of 1,725/1,140
- Auto thermal protection for motor safety and reliability
Top product applications:
- Air Conditioning Systems
- Industrial Fans
- Residential Ventilation Systems
Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/4 hp, 1/8 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 5.9/3.8 A Full Load Amps, 56Z Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Motor Mounting Position All Angle
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.32
- Package Width: 8.25
- Package Height: 11.00
- Package Weight: 20.59
Product info last updated on February 8, 2026 6:41am UTC
Category: Motors
