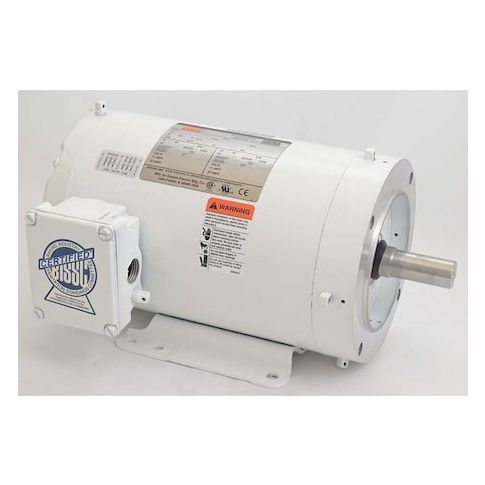

Washdown Mtr, 3 Ph, TENV, 1-1/2 HP, 1740 rpm MPN:1TRZ1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2488491
Washdown Mtr, 3 Ph, TENV, 1-1/2 HP, 1740 rpm
This 1.5 HP three-phase washdown motor from Dayton is designed for use in harsh environments where high sanitation standards are required. Its totally enclosed, non-ventilated design protects against dust and water ingress, making it ideal for applications in food processing, pharmaceutical, and other industries where cleanliness is crucial. With a continuous duty cycle and a service factor of 1.15, this motor provides reliable and efficient performance. Its compact size and C-face mounting make it easy to integrate into existing systems, making it a versatile solution for a wide range of washdown applications.
Top product features:
- Three Phase Design
- Totally Enclosed Non-Ventilated (TENV) Enclosure
- 1.5 HP Power Rating
Top product applications:
- Food Processing
- Pump and conveyor systems in the food industry
- High-pressure washdown applications
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,750 RPM, Voltage 230/460V AC, Full Load Amps 4.3/2.1 A, 145TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face, Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 26.00
Product info last updated on January 31, 2026 6:51am UTC
Category: Motors
