Brake, Magnetic, Dripproof, Torque 10 Ft-Lb MPN:2LYT9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2466064

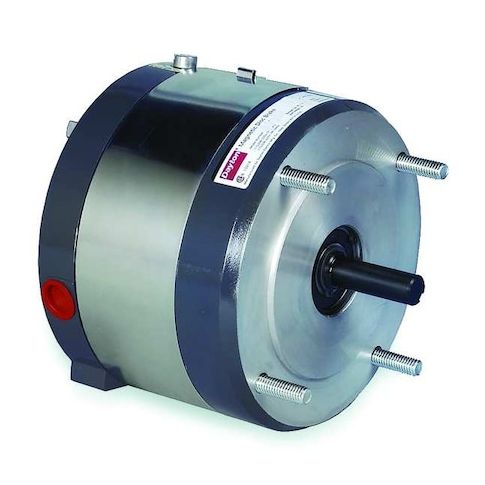

Brake, Magnetic, Dripproof, Torque 10 Ft-Lb
The Dayton Double C-Face Magnetic Disc Brake is a reliable and efficient braking solution for various industrial applications. Suitable for use with single and three-phase general-purpose C-face motors, this brake provides a static torque of 10 ft-lb and can handle continuous duty. With a maximum speed of 3,450 RPM, it's ideal for applications requiring precise speed control, such as conveyor systems, packaging machinery, and material handling equipment. The brake's dripproof enclosure ensures safe operation in harsh environments, making it a valuable addition to any industrial setup. Its compact design and ease of installation make it a convenient choice for many industries.
Top product features:
- Dripproof enclosure to protect against water and dust ingress
- Double C-Face Magnetic Disc Brake design for high torque output
- Continuous duty operation for sustained use and reliability
Top product applications:
- General Purpose C-Face Motors
- Single Phase General Purpose C-Face Motors
- Three Phase General Purpose C-Face Motors
Brake, Clutch/Brake Type Double C-Face Magnetic Disc Brake, Coil Voltage 174-190/380V AC @ 50 Hz, 208-230/460V AC @ 60 Hz, Operating Voltage 208-230/460V AC, Enclosure Type Dripproof, Static Torque 10 ft-lb, Horsepower @ RPM 3 hp @ 1725 RPM, 5 hp @ 3450 RPM, Shaft Diameter 5/8 in, Maximum Speed 3,450 RPM, Mounting Location NEMA C-Face Flanges on Motors and Gear Reducers, For Use With Single and Three Phase General Purpose C-Face Motors, Includes Hardware, Continuous Duty Yes
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 7.70
- Package Height: 8.70
- Package Weight: 12.14
Product info last updated on February 7, 2026 8:12am UTC
Category: Motors
