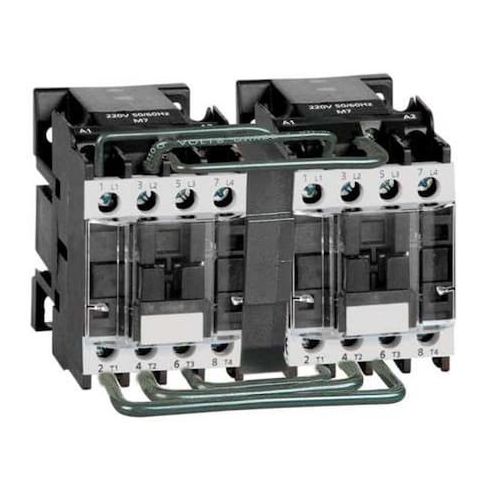

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Reversing, Screw MPN:6ECE1
Free Shipping
In Stock
The Dayton IEC Magnetic Contactor is a reliable and efficient solution for controlling and reversing the flow of electrical current in a variety of applications. Its three-pole design and 24V DC coil make it ideal for use in industrial control systems, while its screw-type terminals provide a secure and easy connection. The contactor's reversing capability allows for smooth and efficient switching between different states, making it perfect for use in applications such as conveyor systems, pumps, and motors. With its compact design and high reliability, the Dayton IEC Magnetic Contactor is a great addition to any industrial control system.
Top product features:
- Three-pole reversing capability allows for alternating motor direction
- One normally-open auxiliary contact for added control functionality
- Screw-type terminals enable easy and secure connections
Top product applications:
- Motor Speed Control
- Motor Direction Control
- Power Distribution and Switching
The DAYTON IEC Magnetic Contactor is an IEC-standard, three-pole reversing magnetic contactor with a 24 V DC coil. It includes one normally-open auxiliary contact and uses screw-type terminals
- it has no enclosure and is rated for operation within the specified frequency ranges. Overall dimensions are 4.13 in wide by 4.13 in high by 4.68 in deep.
- Action: Reversing
- - Reversing capability: Yes
- - Poles: 3
- - Coil voltage: 24 V DC
- - Auxiliary contacts: 1 NO
- - Terminal connection: Screw
- - Enclosure: No Enclosure
- - Frequency: 50/60 Hz
- - Full Load Amps (Inductive): 12 A
- - Full Load Current (Resistive): 25 A
- - Standards: IEC
- - Item: IEC Magnetic Contactor
- - Dimensions: 4.13 in W x 4.13 in H x 4.68 in D
Additional Information
- Country of Origin: IN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.90
- Package Width: 3.40
- Package Height: 7.00
- Package Weight: 3.05
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
