IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing MPN:6EAW1
Free Shipping
In Stock

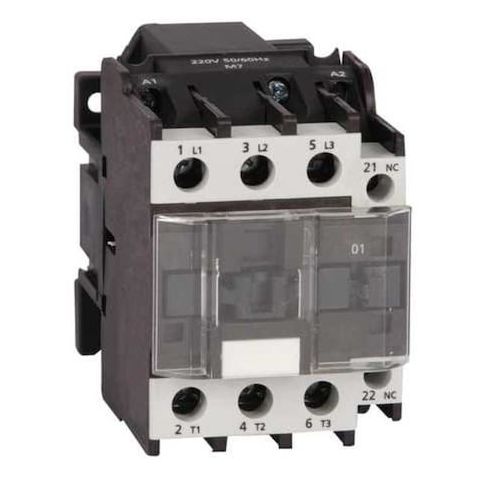

The DAYTON IEC Magnetic Contactor is a reliable and efficient switching solution for a variety of applications. Suitable for use in industrial, commercial, and residential settings, this contactor is ideal for controlling and switching loads up to 25 HP at 575V. Its 3-pole, non-reversing design provides a high level of control and flexibility, while its 24V AC coil ensures easy integration with existing control systems. With its compact design and CSA/UL listing, this contactor is a great choice for applications where reliability and efficiency are paramount, such as in HVAC, lighting, and motor control systems.
Top product features:
- It uses an electromagnetic coil to open or close contacts, intended for switching applications within specified electrical ratings.
- It has a non-reversing action, meaning it can only be activated in one direction.
- It is rated for operation at 50 or 60 Hz, allowing it to be used in a variety of electrical environments.
Top product applications:
- Motor control applications
- Control of lighting and HVAC systems
- Power distribution and switching in industrial settings
The DAYTON IEC Magnetic Contactor is rated for operation within the specified IEC standards. It uses an electromagnetic coil to open or close contacts, intended for switching applications within specified electrical ratings. This unit is a 3-pole, 24 V AC coil, non-reversing contactor with one normally open auxiliary contact, configured in the IEC style.
- Action: Non-Reversing
- - Poles: 3
- - Coil Voltage: 24 V AC
- - Auxiliary contacts: 1 NO
- - Auxiliary contact form/config: 1NO
- - Embedded Surge Suppressor: No
- - Enclosure: Compatible with standard enclosures
- does not include an enclosure
- - Frequency: rated for operation at 50 or 60 Hz within specified parameters
- - Full Load Amps - Inductive: rated for continuous operation at up to 32 A under specified conditions
- - Full Load Amps - Resistive: rated for continuous operation at up to 50 A under specified conditions
- - HP @ 1 Phase - 120V: Suitable for switching loads up to 2 hp at 120V (1-phase) when used within its electrical specifications
- - HP @ 1 Phase - 230V: Suitable for switching loads up to 5 hp at 230V (1-phase) when used within its electrical specifications
- - HP @ 3 Phase - 208V: Suitable for switching loads up to 10 hp at 208V (3-phase) when used within its electrical specifications
- - HP @ 3 Phase - 240V: Suitable for switching loads up to 10 hp at 240V (3-phase) when used within its electrical specifications
- - HP @ 3 Phase - 480V: Suitable for switching loads up to 20 hp at 480V (3-phase) when used within its electrical specifications
- - HP @ 3 Phase - 575V: Suitable for switching loads up to 25 hp at 575V (3-phase) when used within its electrical specifications
- - Dimensions (Depth x Width x Height): 3.96 in x 2.2 in x 2.2 in
- - Standards: CSA, UL Listed
- - NEMA Enclosure Rating: No Enclosure
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 3.70
- Package Height: 2.50
- Package Weight: 0.15
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
