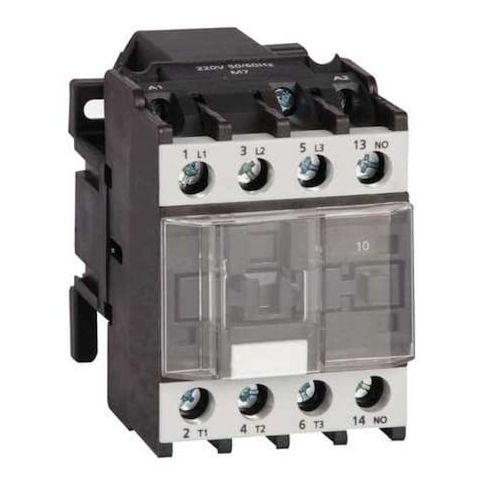

IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing MPN:6EAV2
Free Shipping
In Stock
The Dayton IEC Magnetic Contactor is a reliable and efficient switching device for controlling power circuits. With a 24V AC coil and 3-pole configuration, it's ideal for a wide range of applications, including industrial control systems, HVAC, and power distribution. Its non-reversing action ensures safe and consistent operation, while its compact design fits easily into tight spaces. The contactor's high current rating and durable construction make it suitable for demanding applications, and its compliance with CSA and UL standards ensures safe and reliable performance.
Top product features:
- Operates electrically to control power circuits using an electromagnetic coil
- Has 3 poles for controlling multiple circuits simultaneously
- Includes 1 normally open auxiliary contact for additional control functionality
Top product applications:
- Industrial Control Systems
- Automotive Electrical Systems
- Power Distribution Panels
The DAYTON IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing is an IEC-style, electrically operated switching device used to control power circuits. It uses an electromagnetic coil to open or close the main contacts, and is configured for 3 poles with a 24 V AC coil. This model includes 1 normally open auxiliary contact and has no embedded surge suppressor or enclosure. It is rated for operation within the specified frequency ranges and complies with recognized safety standards. Its dimensions are 3.18 in deep, 1.77 in wide, and 1.77 in high. Reversing capability is not supported.
- Action: Non-Reversing
- - Poles: 3
- - Coil Voltage: 24 V AC
- - Auxiliary Contacts: 1NO
- - Auxiliary Contact Form: 1NO
- - Includes Auxiliary Contacts: Yes
- - Embedded Surge Suppressor: No
- - Enclosure: No Enclosure
- - Frequency: 50/60 Hz
- - Full Load Amps (Inductive/Resistive): 12 A / 25 A
- - Full Load Current (Inductive/Resistive): 12 A / 25 A
- - HP @ Single Phase: 120V = 1 hp
- 230V = 2 hp
- 240V = 2 hp
- - HP @ Three Phase: 208V = 3 hp
- 240V = 3 hp
- 480V = 7 1/2 hp
- 575V = 10 hp
- - Standards: CSA, UL Listed
- - Height: 1.77 in
- - Width: 1.77 in
- - Depth: 3.18 in
- - Item: IEC Magnetic Contactor
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 3.20
- Package Height: 2.00
- Package Weight: 0.50
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
