Washdown Mtr, 3 Ph, TEFC, 7-1/2 HP, 1755 rpm MPN:2RKY9
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2440295

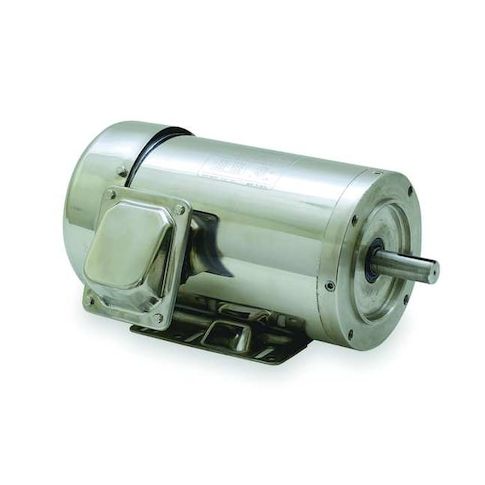

Washdown Mtr, 3 Ph, TEFC, 7-1/2 HP, 1755 rpm
This 7.5 HP, three-phase washdown motor from Dayton is designed for harsh environments and demanding applications. Built with a totally enclosed fan-cooled (TEFC) design, it provides reliable operation and easy cleaning in wet or dirty conditions. Ideal for use in food processing, pharmaceutical, and other industries where sanitation is crucial, this motor offers continuous duty cycle and a high service factor for maximum efficiency. With a compact 213TC frame and NEMA Design B rating, it fits easily into tight spaces and meets or exceeds industry standards for performance and safety.
Top product features:
- Three Phase Design
- Totally Enclosed Fan Cooled Enclosure
- Continuous Duty Cycle
Top product applications:
- Water treatment plants
- Food processing facilities
- Pharmaceutical manufacturing plants
Washdown Motor, Three Phase, Motor Design Three-Phase, 7 1/2 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 18.6/9.3 A, 213TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 25.00
- Package Height: 15.40
- Package Weight: 190.00
Product info last updated on March 25, 2026 3:24pm UTC
Category: Motors
