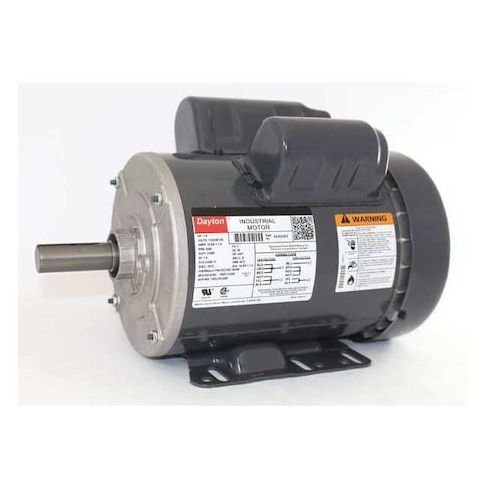

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 143T Frame
This 1.5 HP capacitor-start/run general purpose motor is designed for a wide range of applications, including industrial machinery, pumps, and fans. Its totally enclosed fan-cooled design provides reliable operation in harsh environments, while its single-phase design makes it easy to install and integrate. With a nameplate RPM of 3,450, this motor is suitable for applications requiring high speed and efficiency. Its continuous duty cycle and 40°C maximum ambient temperature make it ideal for use in demanding industrial settings. The motor is also compliant with California Prop 65 regulations, ensuring a safe and reliable operation.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced maintenance
- Capacitor-Start/Run motor design for efficient and reliable operation
- Single Phase motor design for use in a variety of applications
Top product applications:
- Pumps
- Industrial machinery
- Fans
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.6/8.1-7.4 A, 143T Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 12.00
- Package Height: 12.00
- Package Weight: 32.00
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
