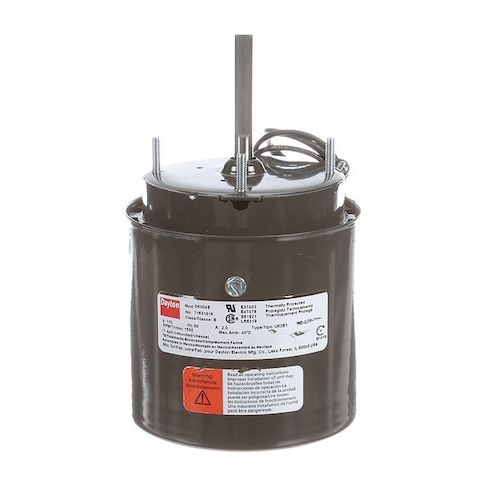

HVAC Motor, 1/20 HP, 1550 rpm, 115V, 3.3 MPN:71631616M
HVAC Motor, 1/20 HP, 1550 rpm, 115V, 3.3
This compact 1/20 HP HVAC motor from Dayton is ideal for small-scale heating and ventilation applications. With a single-phase design and shaded pole motor, it provides efficient operation and reliable performance. Suitable for continuous duty cycles in temperatures up to 40°C, it can be used in a variety of settings, including residential and commercial spaces. Its compact size and low power consumption make it an excellent choice for applications where space and energy efficiency are a priority. Its totally enclosed fan-cooled design ensures long motor life and minimal maintenance.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reliability
- Single Phase motor design suitable for a variety of applications
- Continuous duty cycle operation for consistent performance under heavy loads
Top product applications:
- Air Conditioning Unit
- Portable Fan
- Window Unit Heater
HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 1.8 A Full Load Amps, 3.3 Frame, Output Watts 37 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 8.40
- Package Height: 4.20
- Package Weight: 4.95
Product info last updated on February 27, 2026 4:46pm UTC
Category: Motors
